CBB61 TYPE Square   This series of products made using flame-retardant plastic case epoxy sealed structure, beautiful appearance.

Specification

CBB61 TYPE Capacitor generally use the quadrate anti-flaming plastic shell, epoxy resin packing.This type capacitor is suitable used in the frequency of 50Hz – 60Hz , voltage from 250V– 500V single phase A.C. motors, fan, water pump etc. For starting and running . This type capacitor can continuously working at the rated frequency and voltage.
  OVERALL AND INSTALLATION DIMENSION

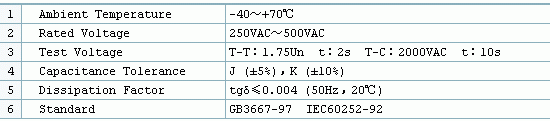

  MAIN TECHNICAL DATA

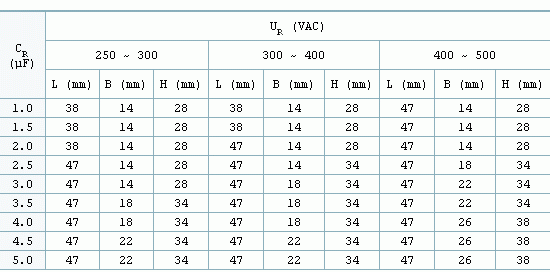

  NOMINAL CAPACITANCE, RATED VOLTAGE AND CASE SIZE TABLE

The main sale market of the products:America and Europe market.
