CD60A-5 TYPE  Based on the basic type,this type of capacitor adopts 250# single terminal, with M8×16 fixing bolt on the bottom,easy installation.

Specification

  CD60A-5 TYPE  Capacitor adopts 250# single terminal, with M8×16 fixing bolt on the bottom, with PVC insulating bushing outside, apply to air compressor motor or relevant other motor match.The parameter of this kind of products are the same with CD60A-1.

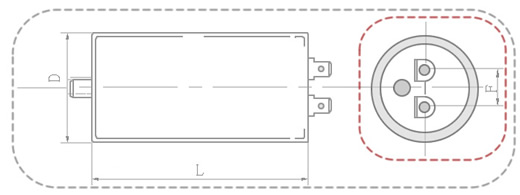

OVERALL AND INSTALLATION DIMENSION

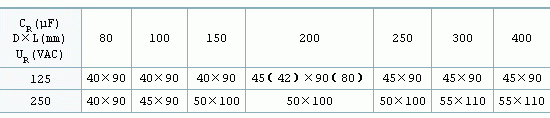

  NOMINAL CAPACITANCE，RATED VOLTAGE AND CASE SIZE TABLE

  The main sale market of products:China and America market.
